Pressure Gauges

Custom Pressure Gauges in Perth, WA

We custom manufacture seals to suit your specific needs in any quantity. We also repair and recondition other manufacturers’ seals. We also have ready to buy welded and conventional clamp diaphragms manufactured by us. Have a look at our range:

Glycerine Filled Gauge

Project Description

  • Case AISI 304 Stainless
  • Steel Bezel Stainless Steel (Bayonet type).
  • Weatherproof Construction
  • Socket +Element Brass
  • Thread 1/8”, 1/4”, 3/8”, 1/2” NPT, BSP, BSPT
  • Movement Brass
  • Dial White Aluminium (Black Printing)
  • Pointer Black Aluminium
  • Window Sheet Glass
  • Standard Size 63, 100, 150mm
  • Accuracy class 1%
  • Scale Range Vacuum to 2,500 bar

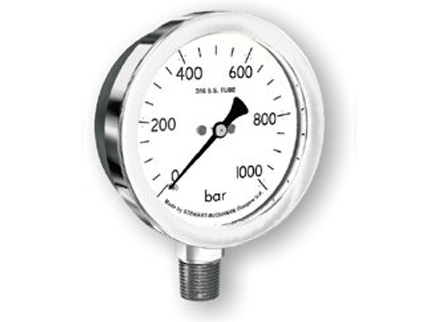

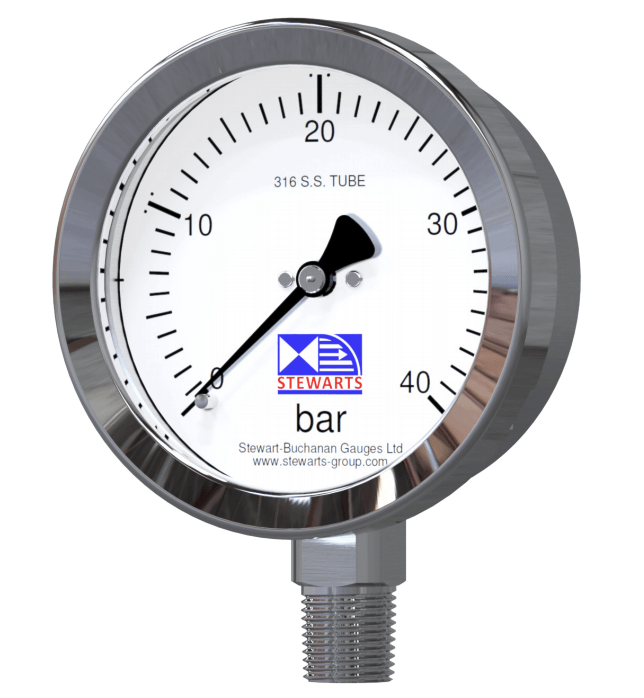

Petro Chemical Stainless Steel

Project Description

  • Case AISI 304 Stainless Steel Bezel Stainless Steel (Bayonet type).
  • Weatherproof Construction Socket + Element AISI 316 Stainless Steel
  • Thread 1/8”, 1/4”, 3/8”, 1/2” NPT, BSP, BSPT Movement
  • Stainless Steel Dial
  • White Aluminium (Black Printing) Pointer Black
  • Aluminium Window Sheet Glass
  • Standard Size 63, 100, 150mm
  • Accuracy class 1%
  • Scale Range Vacuum to 2,500 bar

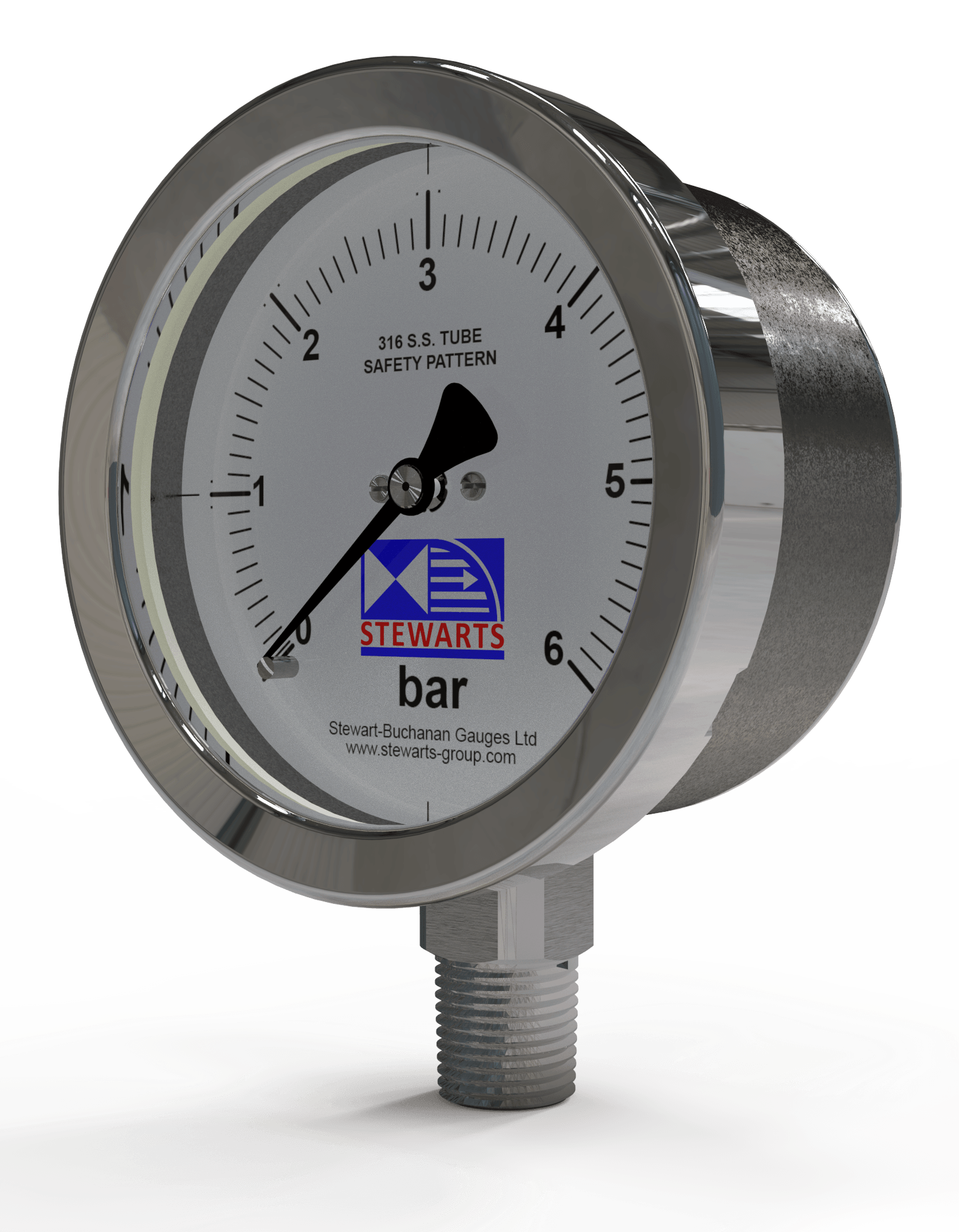

Safety Pattern Gauge

Project Description

  • Case AISI 304 Stainless Steel Solid front between bourdon tube and dial.
  • Bezel Stainless Steel (Bayonet type) Weatherproof Construction Socket + Element AISI 316
  • Stainless Steel Thread 1/8”, 1/4”, 3/8”, 1/2” NPT, BSP, BSPT Movement
  • Stainless Steel Dial
  • White Aluminium (Black Printing) Pointer Black
  • Aluminium Window Laminated Safety Glass
  • Standard Size 63, 100, 150mm
  • Accuracy class 1%
  • Scale Range Vacuum to 2,500 bar

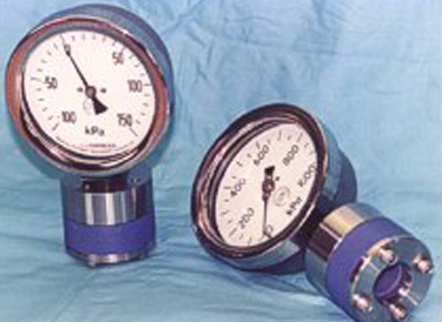

Heavy Duty Bolted Seal

Project Description

Heavy duty bolted seals with P.T.F.E. wetted parts

fitted to 100mm Pressure and compound gauges.

¾” BSP female process connection.

Available with P.T.F.E. diaphragm

or 316 s/steel diaphragm with P.T.F.E. cover and removable lower

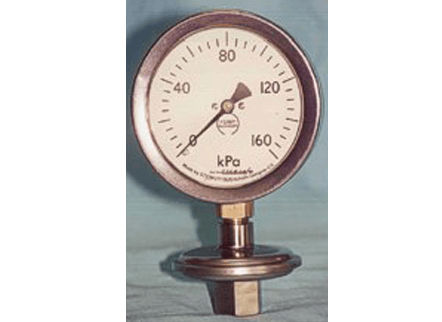

Low Cost Diaphragm Seal

Project Description

Low cost diaphragm seal fitted to 100mm pressure gauge.

Welded 316 s/steel construction.

Available in sizes from 1½” to 3”(nom.)

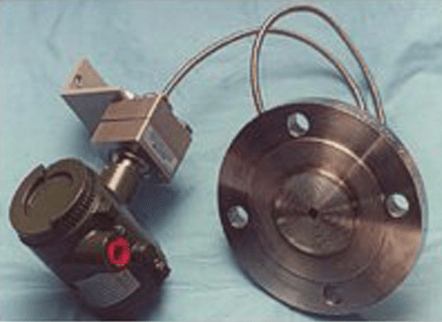

3″ Flange Seal

Project Description

3” flange seal, with welded 316 s/steel diaphragm,

and 1 metre armoured capillary tube fitted to a pressure transmitter.

Available in sizes to suit pipes from 1” to 4”

NB. Optional P.T.F.E. cover or polyurethane abrasion protector is available.

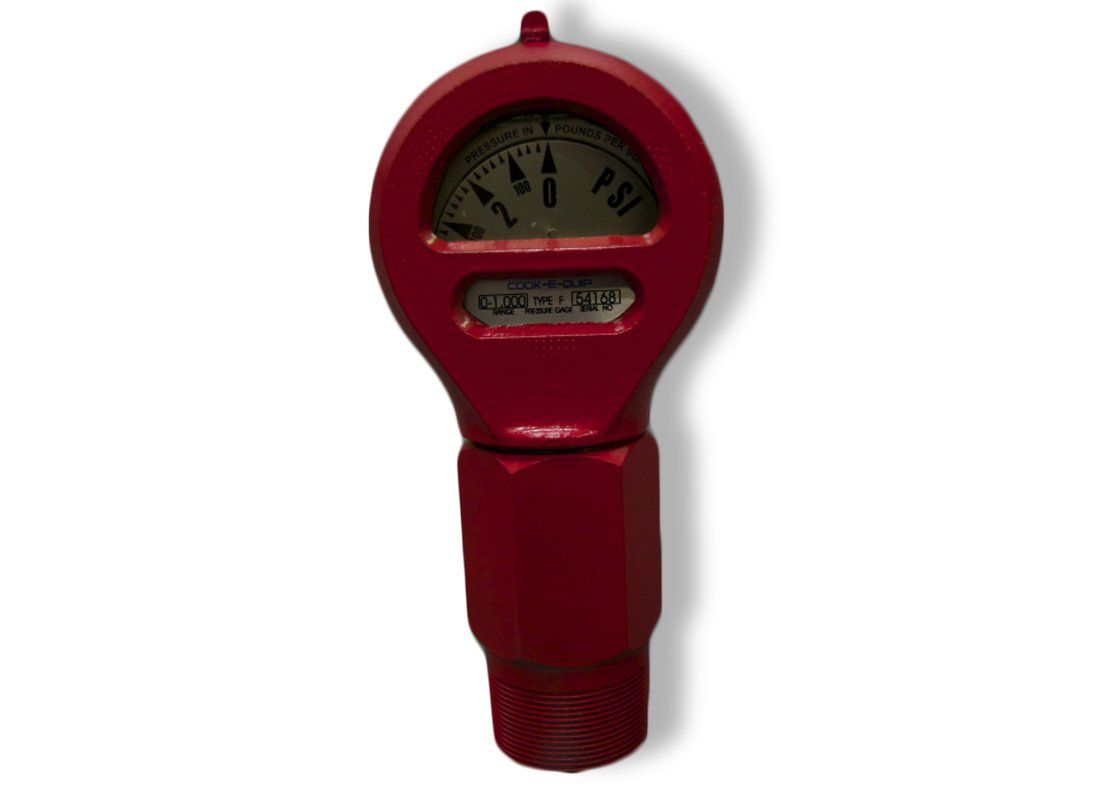

Mud Pump Pressure Gauge

Project Description

A rugged totally waterproof and built to operate in the harshest environments.

It comes with a heavy duty steel case with an acrylic safety window and a chrome

steel 2inch bottom connection.

Special Requirements?

Project Description

We can supply gauges to your specifications. Please contact us with your product enquiry.

If you need something you can’t find on this page, get in touch now. We offer custom made instruments.
